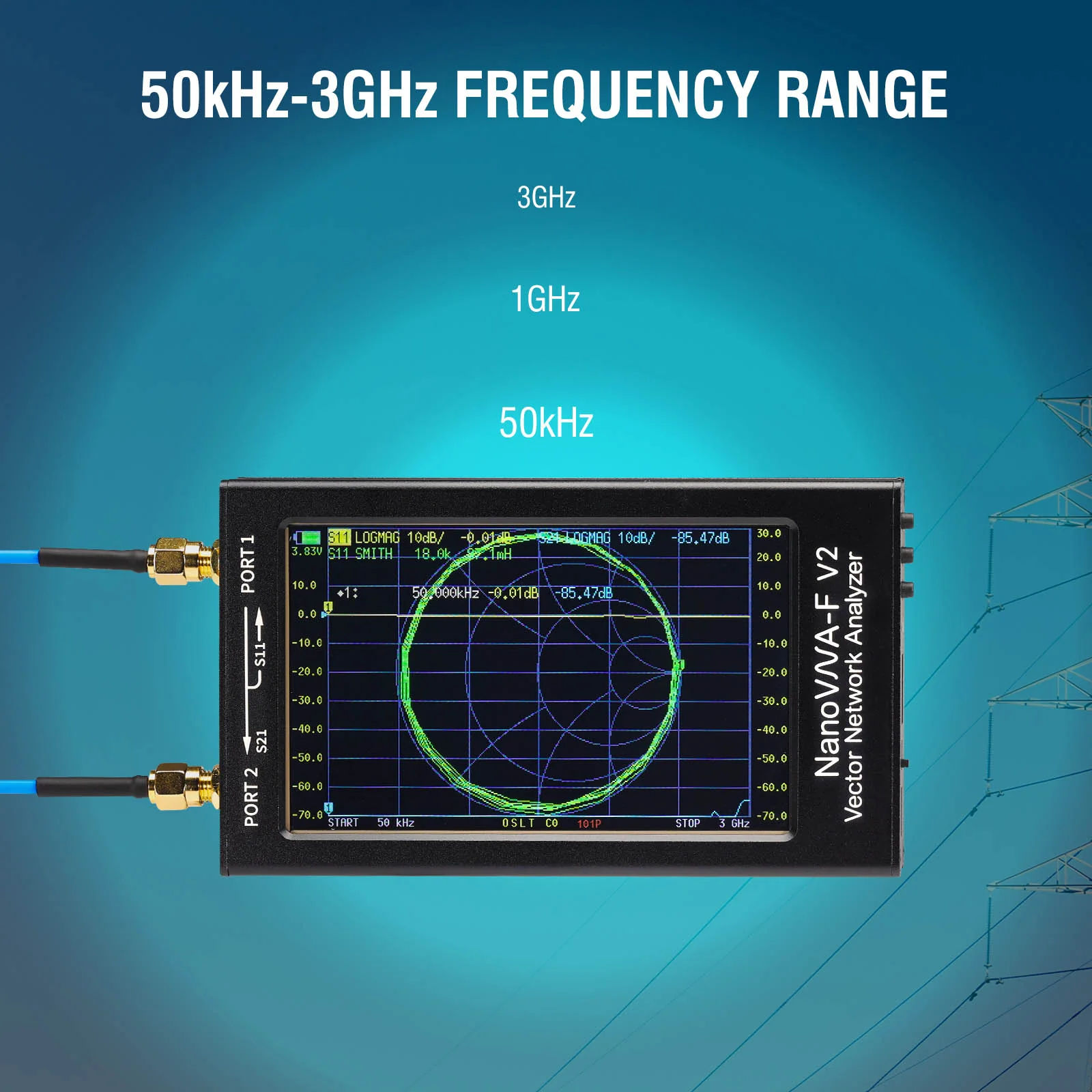

With a wide frequency range from 50 kHz to 3 GHz, the NanoVNA-F V2 is an essential tool for a broad spectrum of RF applications. Whether you're debugging duplexers, measuring S-parameters, analyzing SWR, or mapping phase response, it delivers reliable accuracy. Boasting an impressive dynamic range of 80 dB, it ensures precise readings for both professionals and hobbyists alike, making it a versatile must-have for anyone working in RF diagnostics and analysis.

NanoVNA-F V2 Antenna Analyzer banner

General Specifications
Frequency Range:	50kHz~3GHz
RF output power:	-10dBm[50kHz - 140MHz] -9dBm[140MHz - 1GHz] -12dBm[1GHz - 2GHz] -14dBm[2GHz - 3GHz]
Frequency accuracy:	<±0.5ppm
Display:	4.3 inches IPS LCD[Resolution: 800*480]
Sweep points:	201[11-201 configurable]
Traces:	4
Markers:	-4
Calibration storage:	7
Sweep time:	1.5s/101 points
Operation temperature:	0℃-45℃

General Specifications
Touch screen:	RTP
S21 dynamic range:	70dB[50kHz - 1.5GHz ] 60dB[1.5GHz - 3GHz ]
S11 dynamic range:	50dB[50kHz - 1.5GHz ] 40dB[1.5GHz - 3GHz ]
Battery:	3.7V 5000mAh
Charging/Data port:	USB Type-C
Charging voltage:	4.7V - 5.5V
Power output:	USB-A 5V/1A
RF connector:	SMA
Dimensions:	1307522mm
Shell material:	Aluminum alloy

Note: All specifications are typical values measured under standard conditions. Actual performance may vary depending on environmental factors.

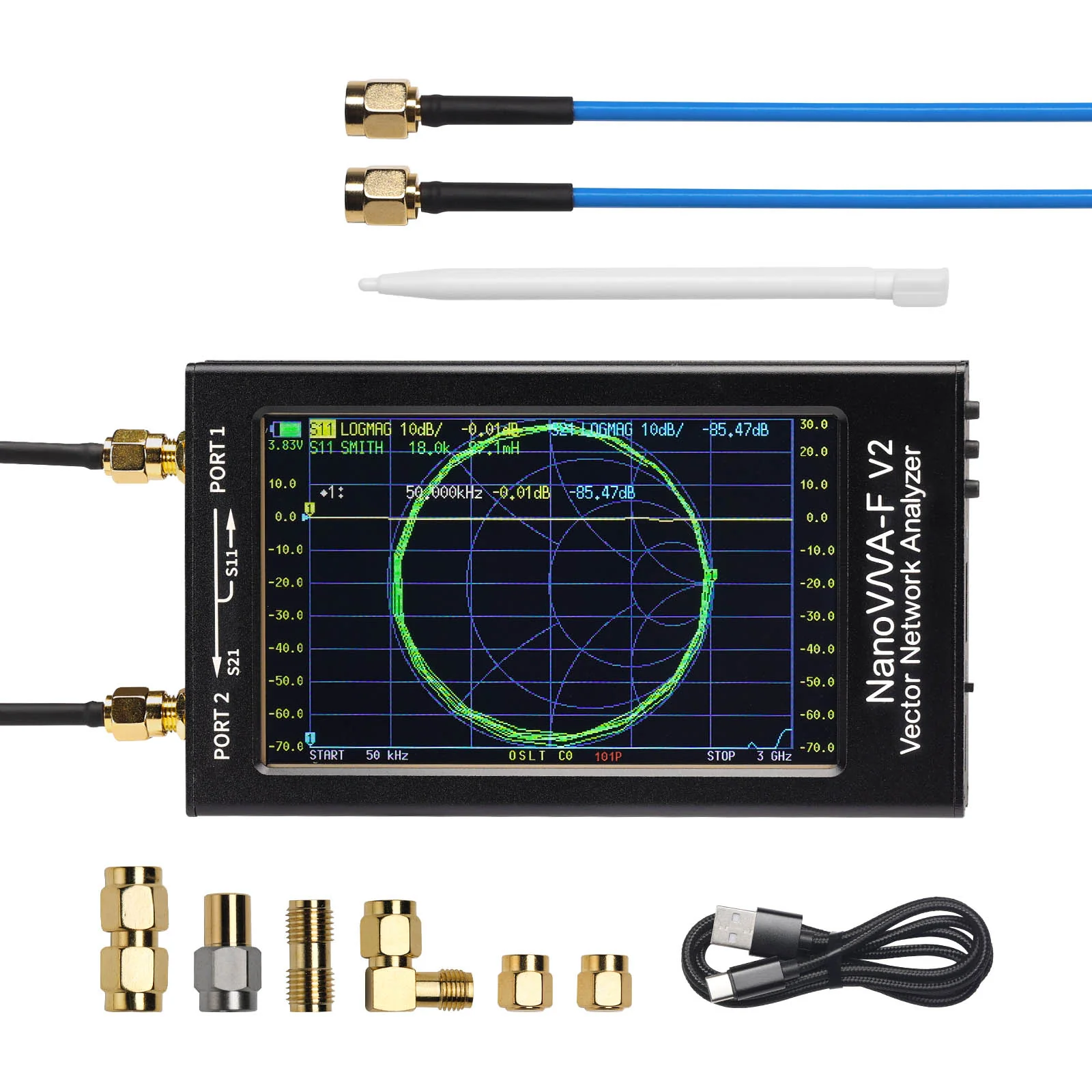

What’s in the box?
1 x NanoVNA-F V2
1 x SMA Open Calibration Standard
1 x SMA Short Calibration Standard
1 x SMA Load Calibration Standard
2 x SMA Male-to-Male RG405 Coaxial Cable
1 x SMA Female-to-Female Adapter (SMA-KK)
1 x SMA Male-to-Male Adapter (SMA-JJ)
1 x SMA Right Angle Male to Female Adapter (SMA-JKW)
1 x USB-C Cable
1 x White Touchscreen Pen

Accessories-Antenna Analyzer

NanoVNA-F V2 Antenna Analyzer | 50KHz to 3GHz | 4.3-Inch Touch Screen | 5000mAh Battery

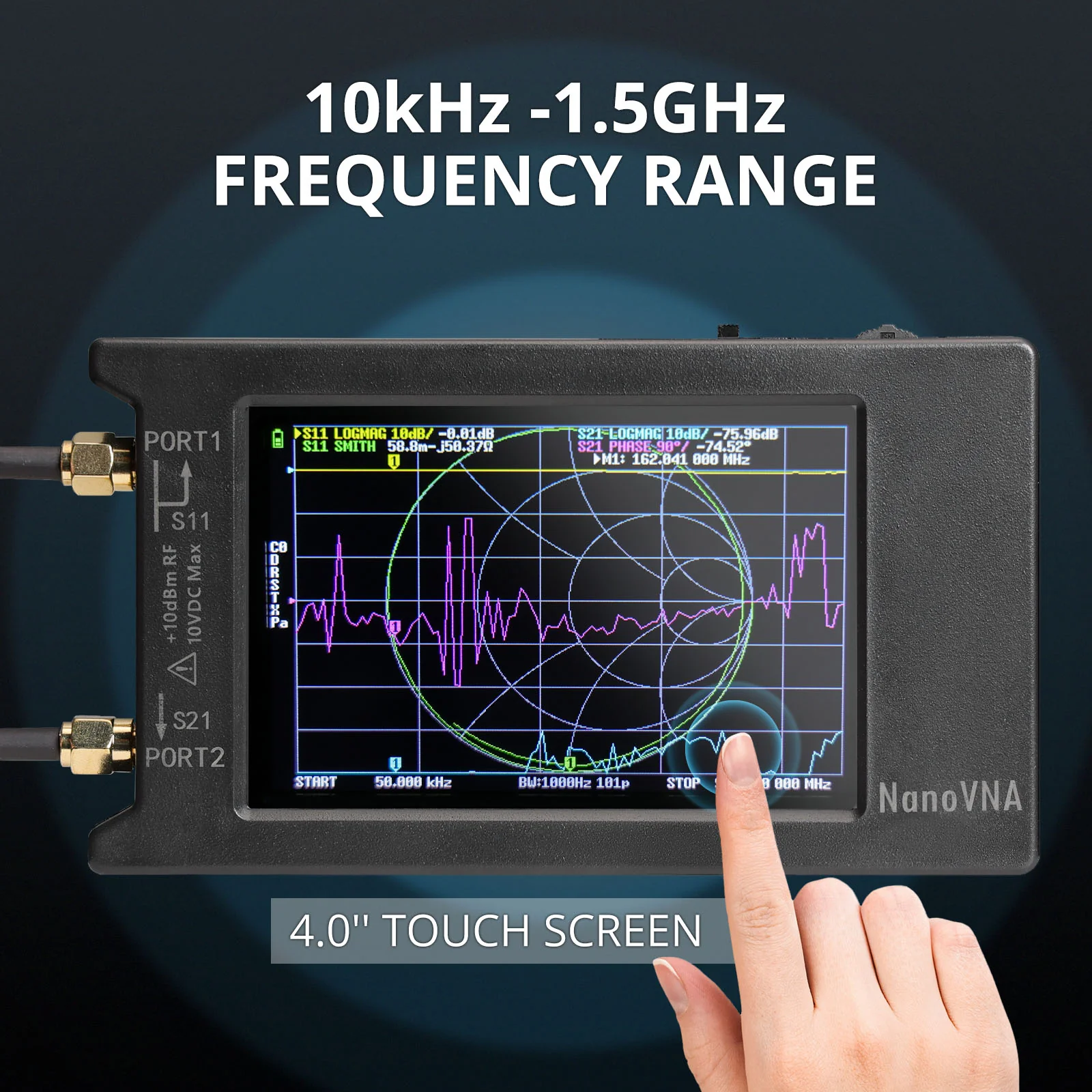

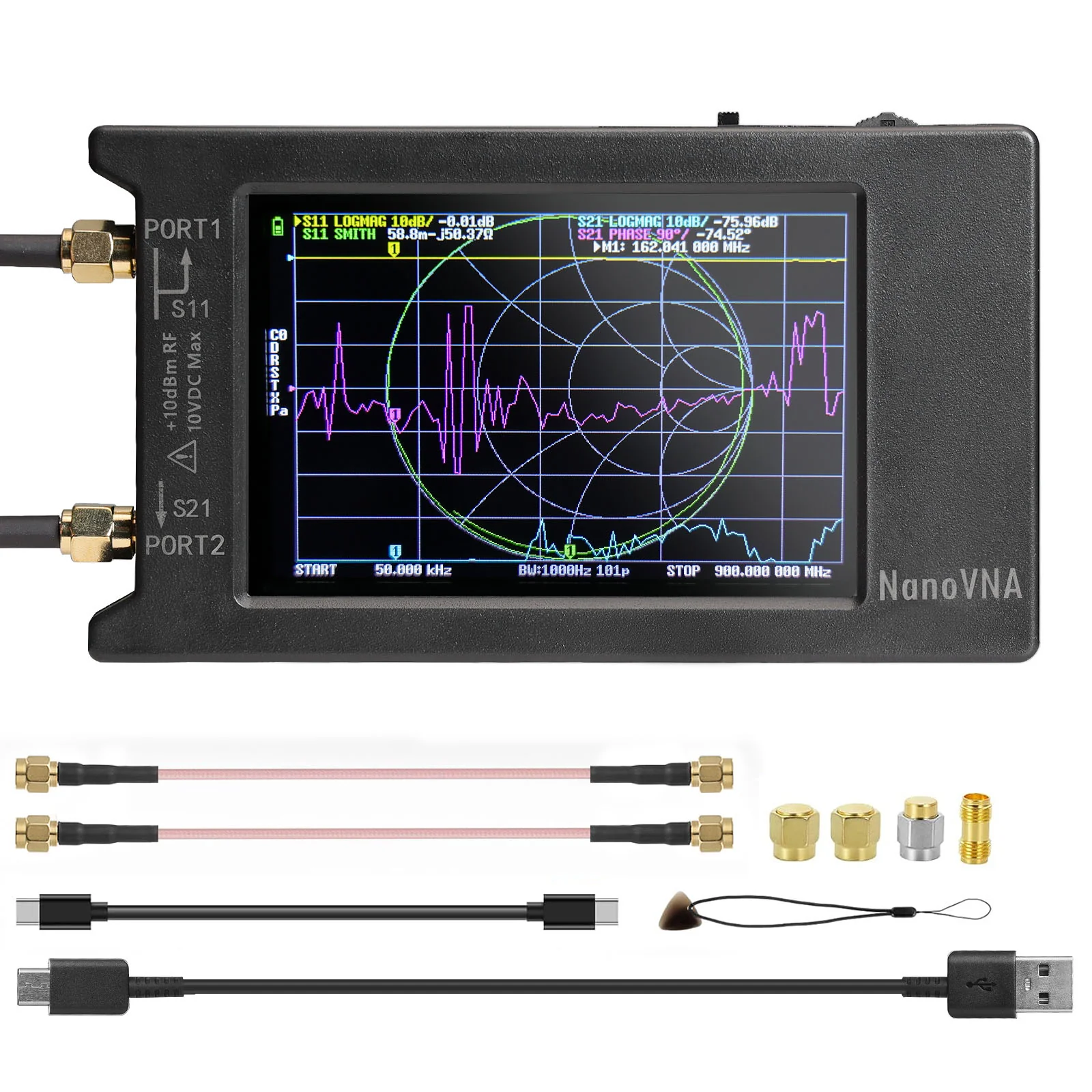

NanoVNA-H4 Vector Network Analyzer | 10kHz-1.5GHz | 4.0” Touch Screen | MicroSD Port | 1950mAh Battery | PC & Android Software Support

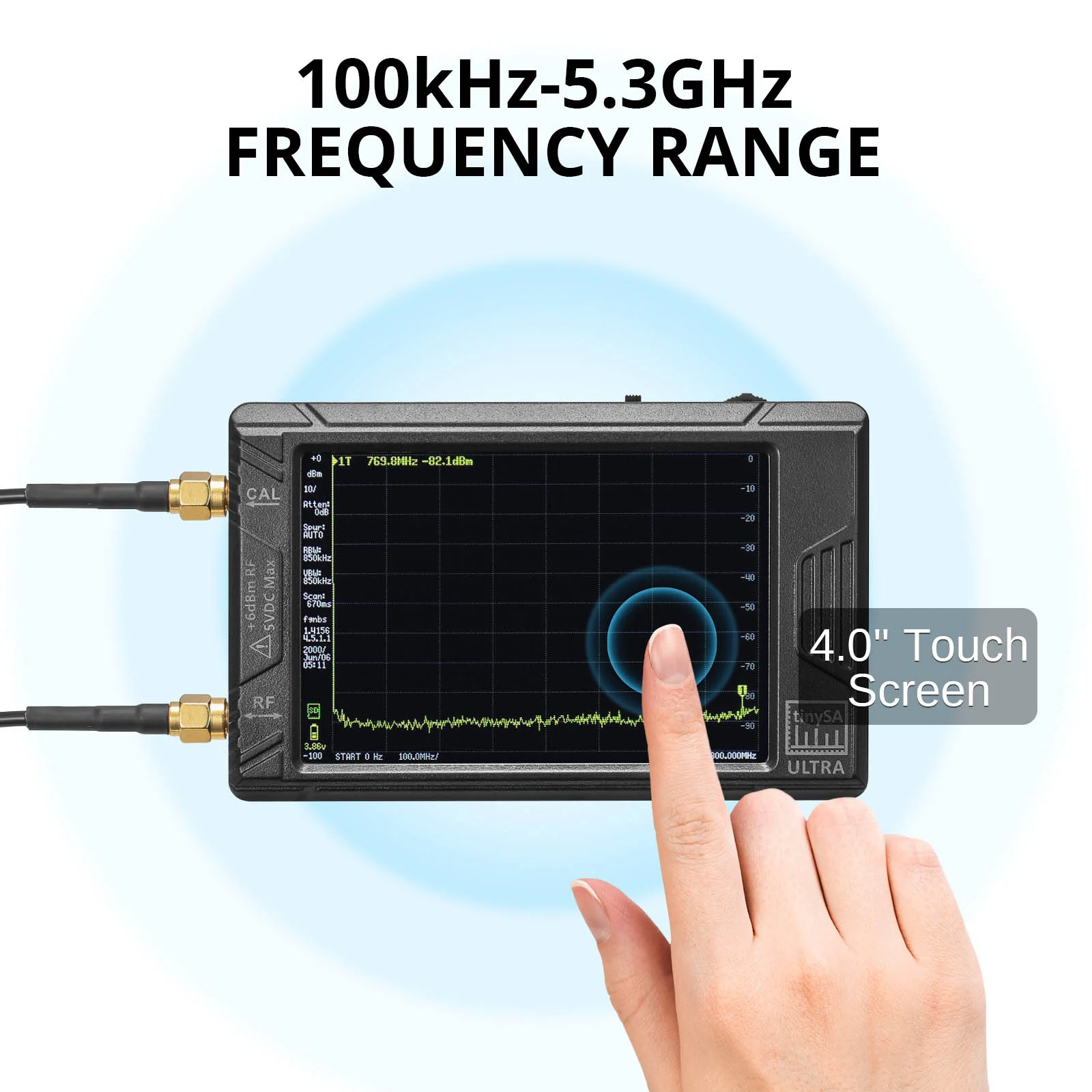

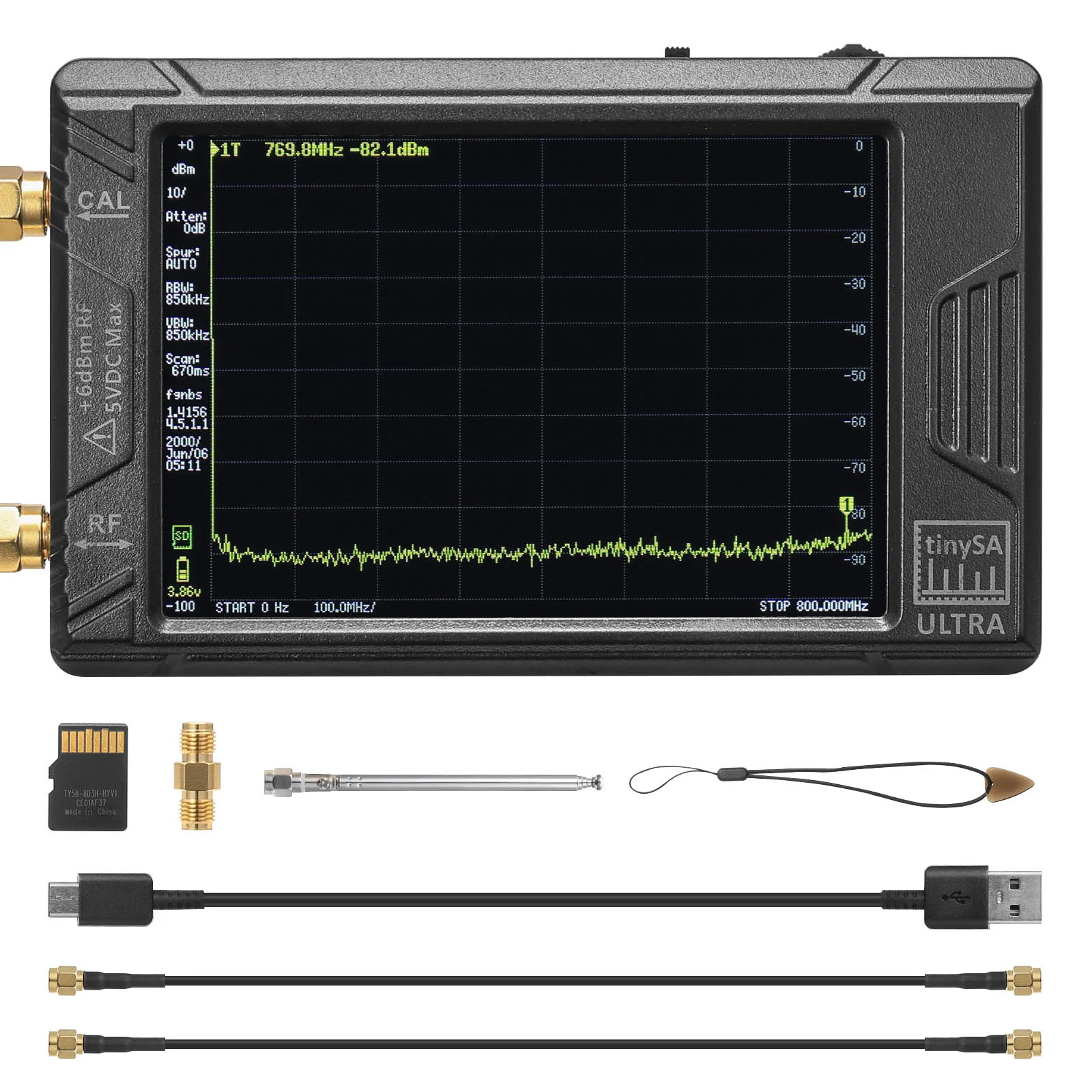

TinySA Ultra Spectrum Analyzer | Antenna Analyzer | 100kHz-5.3GHz | PC Connectivity | 4.0" Touchscreen | 3000mAh Battery

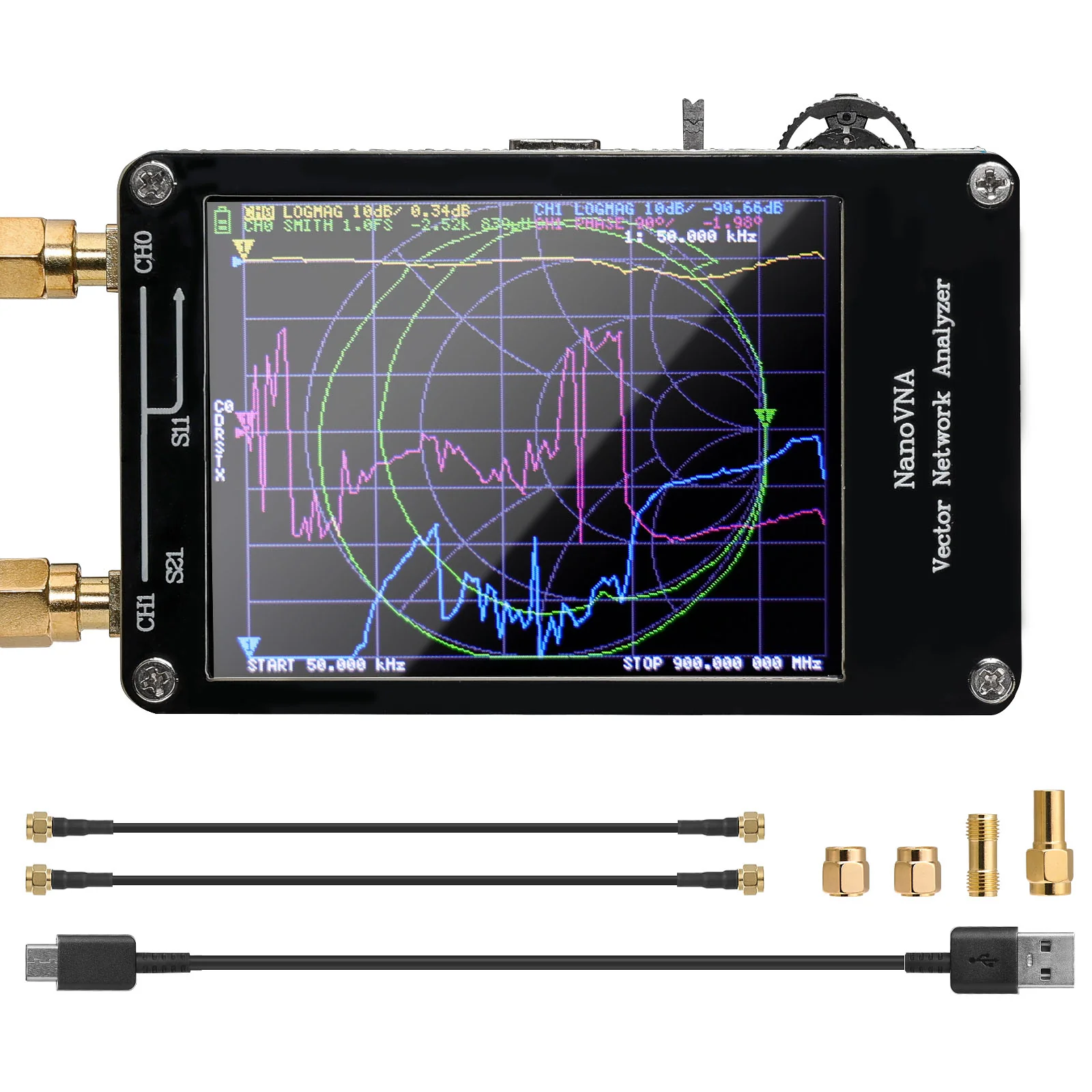

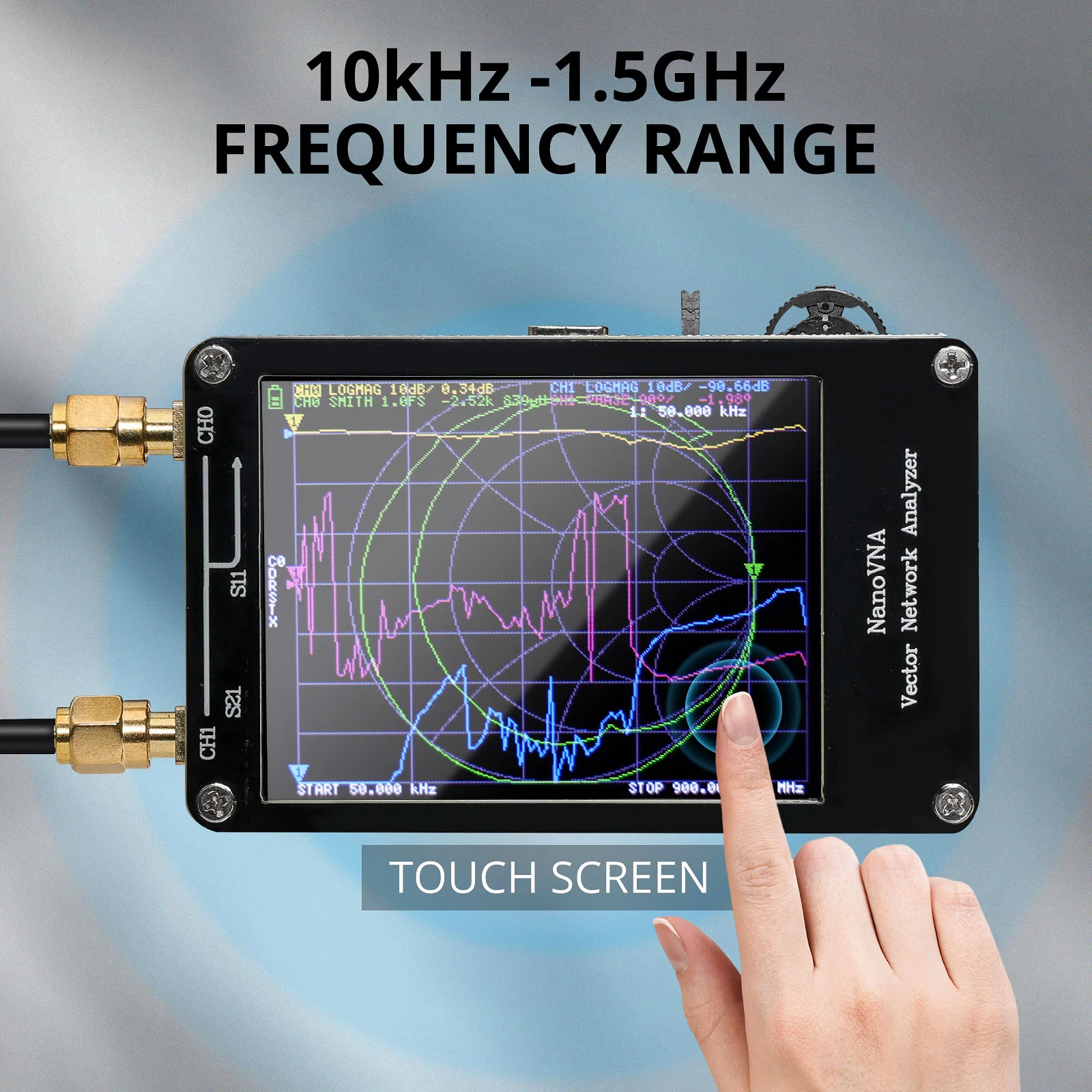

NanoVNA-H Vector Network Analyzer | 10kHz-1.5GHz | Upgraded V3.6 | 650mAh Battery | PC Software Support | USB-C Charging
